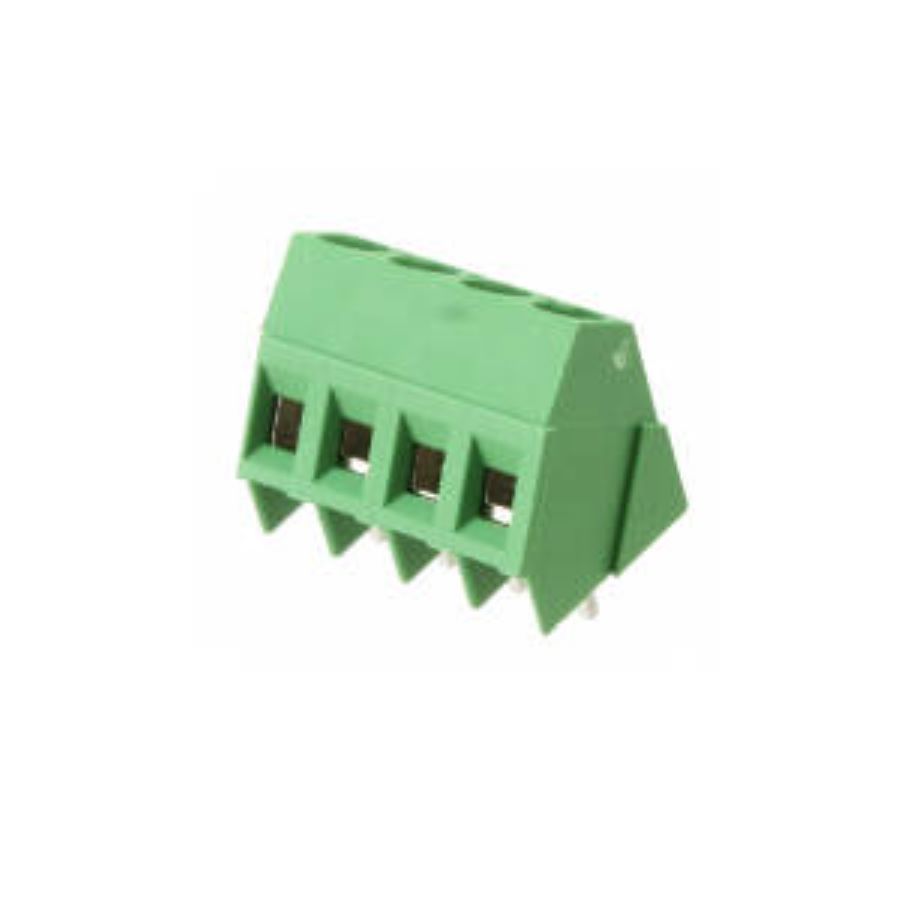

282847-4
Manufacturer:
TE Connectivity
Mfr.Part #:
282847-4
Datasheet:
Description:
Terminal Blocks Through Hole 4 5.08 mm 17.5 A 300 V 30 AWG to 12 AWG
| Parameter | Value |
|---|---|
| Length | 20.32 mm |
| Termination | Screw |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 12.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 5.08 mm |
| Current | 17.5 A |
| Current Rating | 17.5 A |
| Max Current Rating | 17.5 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 4 |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Green |
| Number of Contacts | 4 |
| Connector Type | Receptacle |
| Thread Size | M3 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Number of Positions Per Level | 4 |
| Number of Levels | 1 |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 300 V |
| Max Supply Voltage (AC) | 300 V |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 30 AWG |
| Housing Color | Green |
| Plating | Brass |
| Tail Length | 3.81 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Connection Method | Screw |
| Wire Gauge Range | 30 AWG to 12 AWG |
Stock: 738
Distributors
pcbx
pcbxUnit Price$1.80822
Ext.Price$1.80822
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.80822 | $1.80822 |
| 10 | $1.29018 | $12.90180 |
| 25 | $1.12675 | $28.16875 |
| 50 | $1.02339 | $51.16950 |
| 100 | $0.92285 | $92.28500 |
| 300 | $0.83217 | $249.65100 |
| 500 | $0.79452 | $397.26000 |
| 1000 | $0.75857 | $758.57000 |
| 3000 | $0.72425 | $2172.75000 |
| 5000 | $0.69148 | $3457.40000 |
